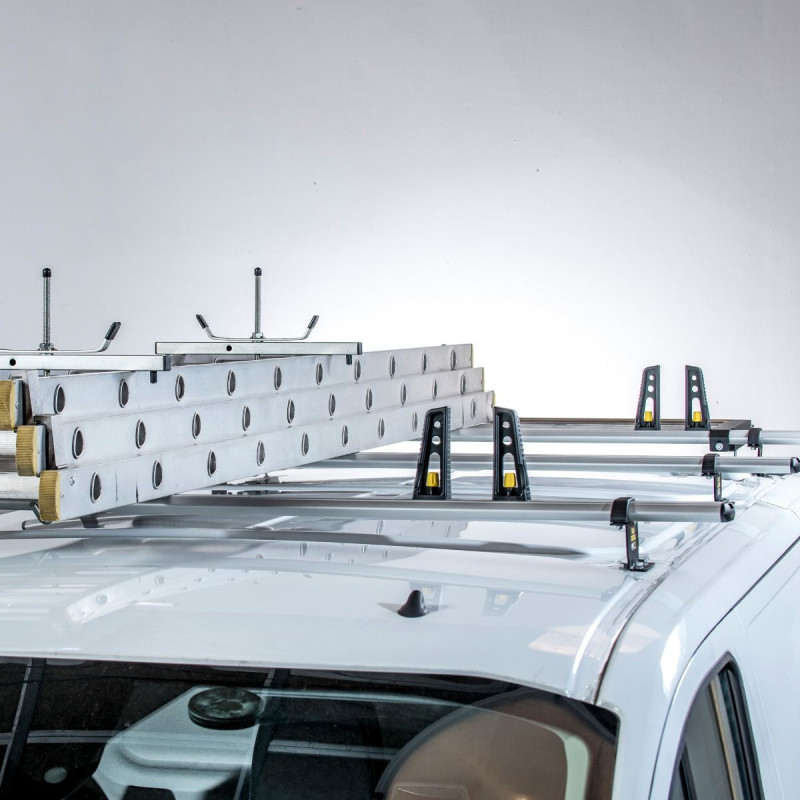

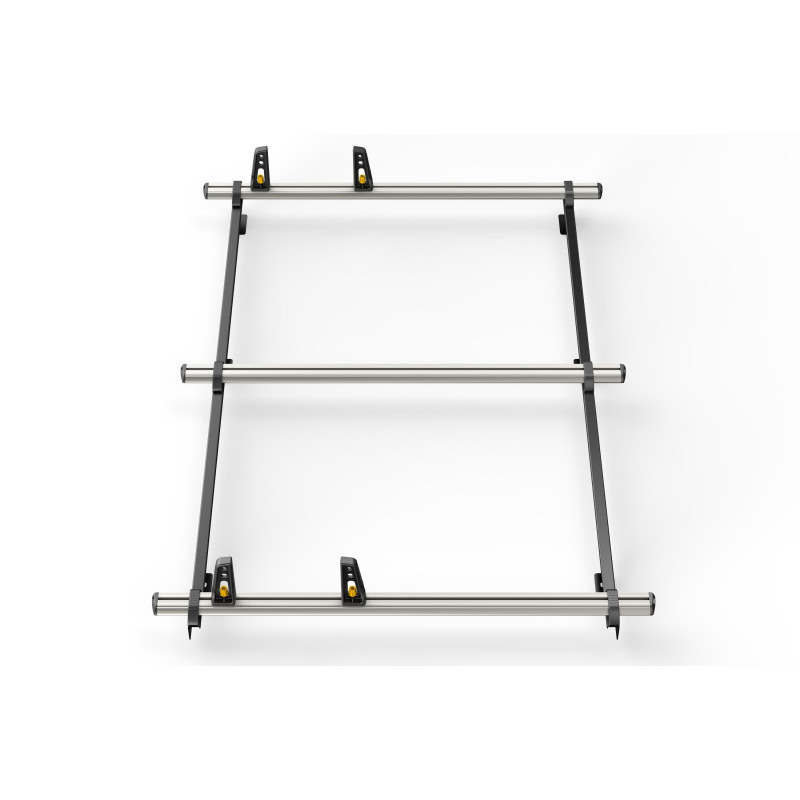

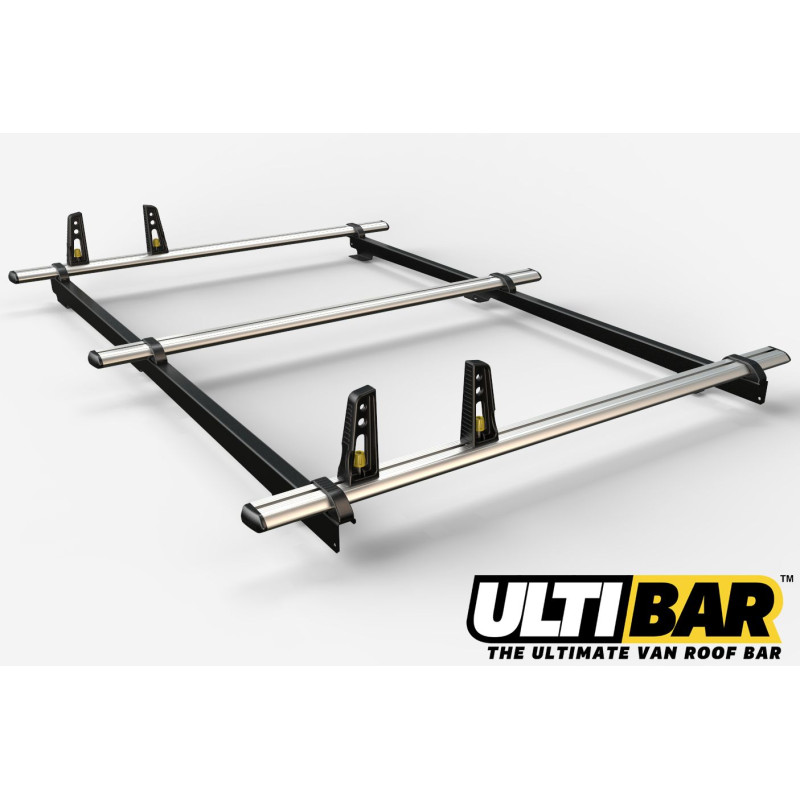

Ford Transit Connect 2002 - 2013 Roof Bars - 3 bar ULTI System (8x4 capacity) L1H1

Dimensions:

Cross-members (mm) L x W x D = 1300 x 60 x 30.

Side rail length: 1720mm

Weight: 11.4kg.

Each individual ULTI Bar has been tested up to 80kg per bar. However for your van's actual load carrying capacity please always refer to your vehicle's handbook.

Comes complete with galvanised powder coated steel side rails brackets.

This product is suitable for the SWB (L1) Transit Connect pre 2014 models only.

Approximate fitting time 40-45 minutes.

Detailed fitting instructions fixings are supplied with this product. Retain instructions for future reference.

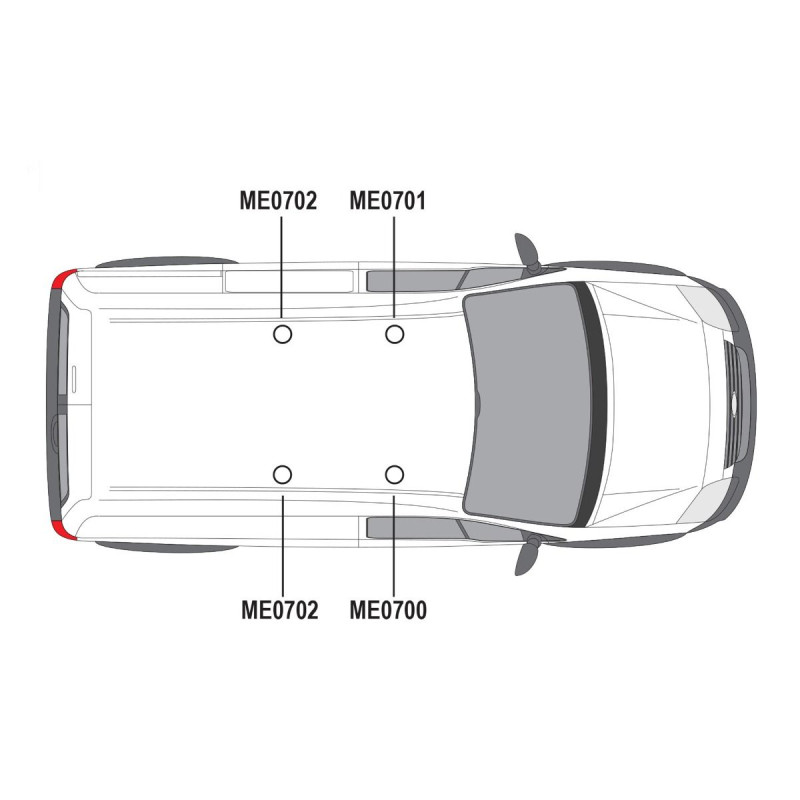

Designed to utilise the vehicle manufacturers mounting points.

As the vehicle roof has no rear fixing point, the rear foot of the side rail rests on the roof as a support bracket.

No drilling of the roof is required to fit this product.

One-man fit.

Maximum load is in accordance with the vehicle manufacturers load bearing capacity (refer to vehicle handbook).
